Ternarizing CNNs

Efficient Human Activity Recognition

Overview

We built a compact convolutional neural network to classify human activities from radar spectrograms, then compressed it for integer-only inference. The model recognizes jogging, jumping, sit-ups, waving, and other activity from single-channel 64 × 64 inputs.

The compression pipeline combines ternary weights, quantized activations and biases, pruning, batch-normalization folding, and quantization-aware training. The goal was to preserve the full-precision model's accuracy while reducing its numerical precision and reliance on floating-point operations.

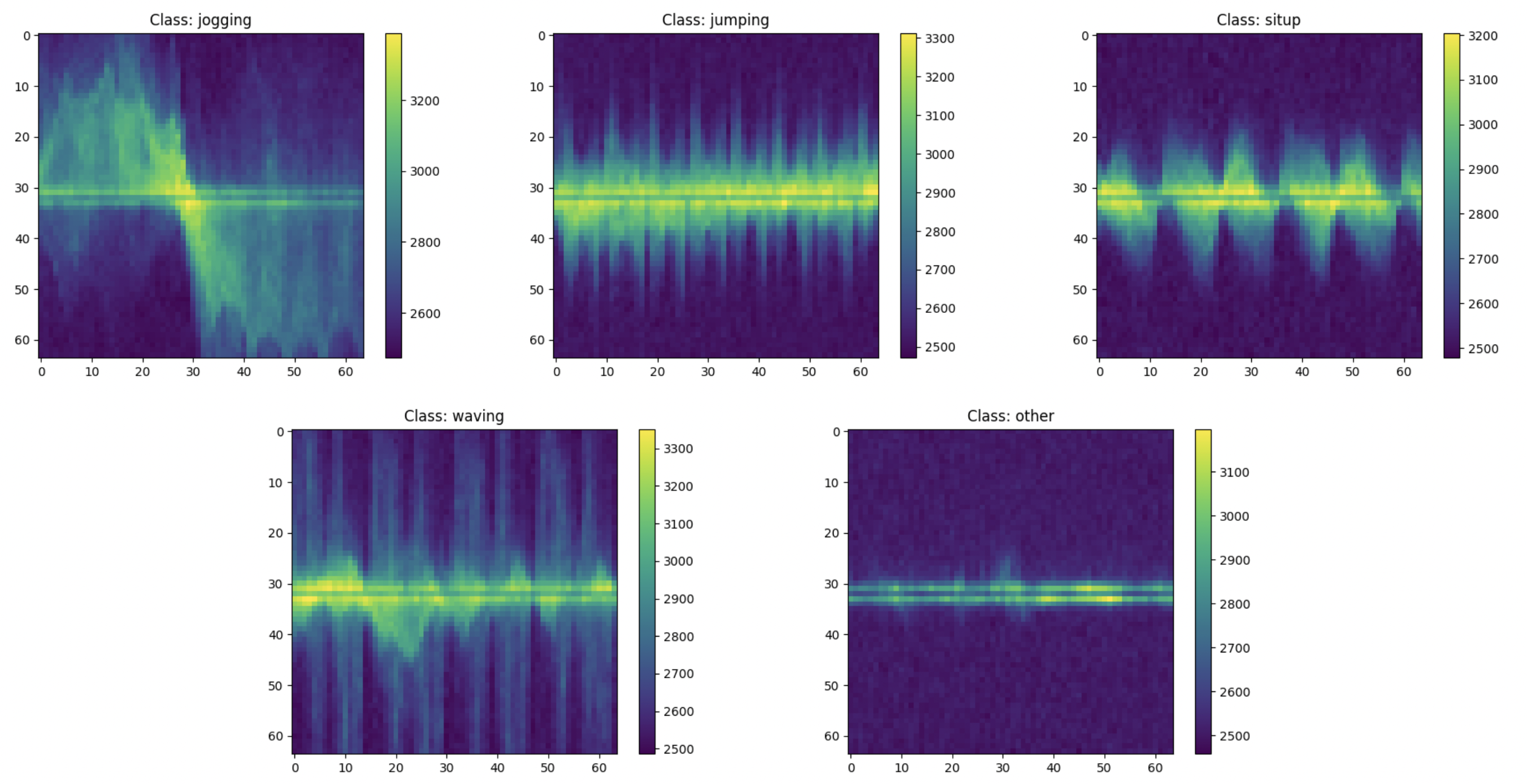

Radar spectrogram examples for jogging, jumping, sit-ups, waving, and other activity
Representative spectrograms from each of the five activity classes.

Why It Matters

A full-precision model stores each weight with 32 bits. Restricting a weight to {−1, 0, +1} allows it to be encoded with 2 bits, a 16× reduction in raw weight storage before accounting for biases, scales, and other model data. The challenge is retaining accuracy after introducing this low-precision constraint [1].

The compressed model reached 98.91% mean accuracy, compared with 99.42% for the FP32 baseline.

How It Works

  1. Radar representation. Each sample is a 64 × 64 × 1 spectrogram from a private radar dataset with five activity classes.
  2. Compact CNN. One 2D convolution is followed by two depthwise separable convolution blocks, global average pooling, and a five-class output layer. The network contains 3,029 parameters.
  3. Quantization-aware training. A threshold maps weights to {−1, 0, +1}, while fake quantization exposes the model to low-precision arithmetic during training.
  4. Integer inference. Activations use 8-bit precision and biases use 23-bit precision. We pruned the model to approximately 45% sparsity, folded batch normalization into the convolution parameters, and used dyadic scale factors for multiplication-and-bit-shift requantization.
Compact CNN with an initial convolution, two depthwise separable blocks, global average pooling, and a classifier
The 3,029-parameter CNN uses depthwise separable convolutions to keep the architecture compact.

Weight Ternarization

For each layer, a threshold determines whether a full-precision weight maps to −1, 0, or +1. A non-negative scale factor α preserves the magnitude of the original weight distribution while the ternary values provide a compact representation. The extracts below show corresponding floating-point parameters and their ternarized weights and quantized biases.

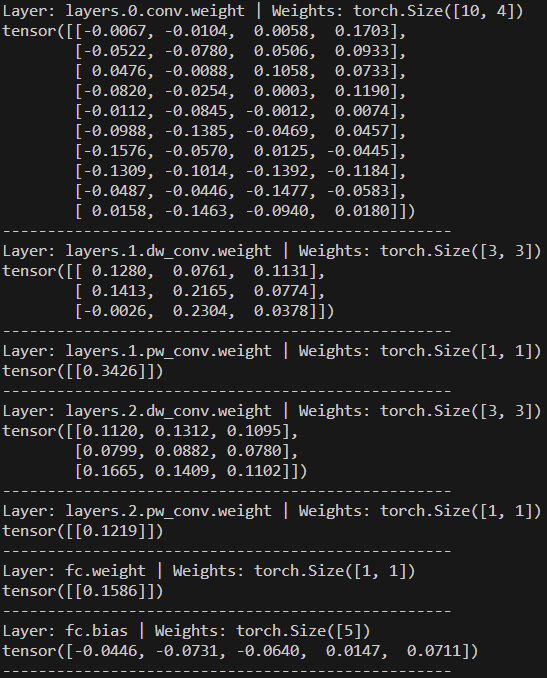

Floating-point CNN weights and biases before quantization
Floating-point weights and biases

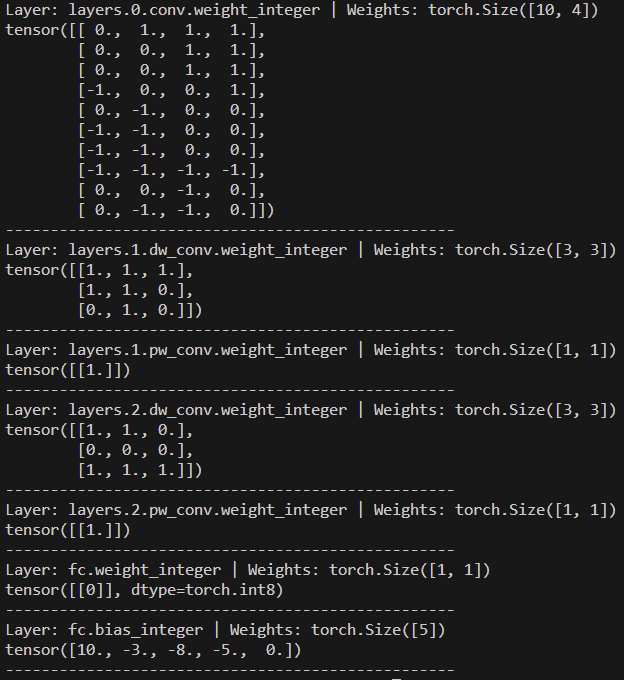

Ternarized CNN weights and quantized biases
Ternarized weights and quantized biases

Quantization-Aware Training

We used uniform affine quantization to approximate a real value r as q = round(r / scale) + zero_point. During training, fake-quantization modules simulate the rounding and clipping used at inference while the trainable parameters remain in floating point. A straight-through estimator supplies gradients through the non-differentiable rounding operation [2], [3].

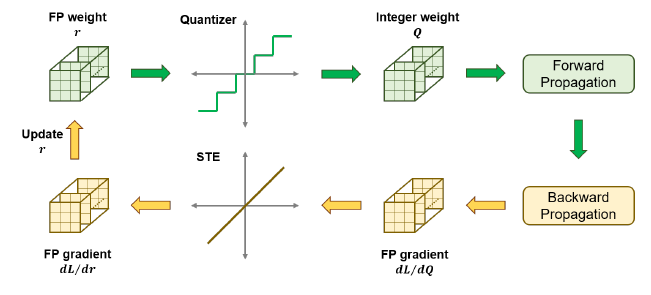

Quantization-aware training with a straight-through estimator
During training, the forward pass simulates integer weights while full-precision parameters receive gradient updates through the straight-through estimator.

Integer-Only Inference

After pruning to approximately 45% sparsity, we folded each batch-normalization layer into the preceding convolution. Convolution, activation, and pooling then operate on integer values. Dyadic scales of the form s = a / 2ᵇ replace general division with integer multiplication and bit shifting during requantization [2], [4].

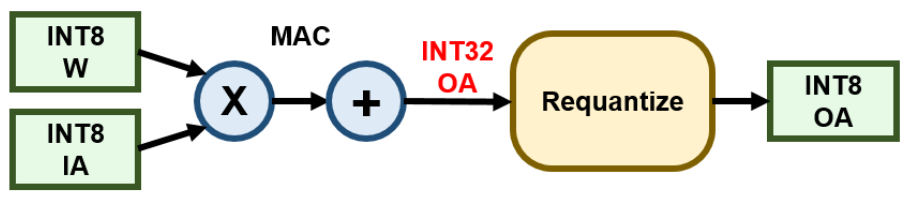

Integer multiply-accumulate and requantization pipeline
Integer weights and activations accumulate into a wider output before requantization returns the activation to low precision.

Evaluation

We evaluated the FP32 and compressed models using the same five cross-validation folds. The compressed model remained within 1.09 percentage points of the baseline on every fold and matched it on fold 5.

Fold FP32 accuracy Compressed accuracy
199.27%98.19%
2100.00%99.64%
399.27%98.91%
498.55%97.83%
5100.00%100.00%
Mean 99.42% 98.91%

Takeaway

Ternarization, quantization, and pruning reduced numerical precision while limiting the mean accuracy change to 0.51 percentage points. The available evaluation measures classification accuracy; hardware latency, memory use, and energy consumption were not benchmarked.

References

  1. F. Li, B. Liu, X. Wang, B. Zhang, and J. Yan, Ternary Weight Networks , 2016.
  2. B. Jacob, S. Kligys, B. Chen, M. Zhu, M. Tang, A. Howard, H. Adam, and D. Kalenichenko, Quantization and Training of Neural Networks for Efficient Integer-Arithmetic-Only Inference , CVPR 2018.
  3. Y. Bengio, N. Léonard, and A. Courville, Estimating or Propagating Gradients Through Stochastic Neurons for Conditional Computation , 2013.
  4. Z. Yao, Z. Dong, Z. Zheng, A. Gholami, J. Yu, E. Tan, L. Wang, Q. Huang, Y. Wang, M. W. Mahoney, and K. Keutzer, HAWQ-V3: Dyadic Neural Network Quantization , ICML 2021.
